The blood thawing machine provides consistent thawing performance.
- Model : BTM-O
- Maximum Thawing Quantity (200ml) : 36
- Temperature Control Range : 25-42℃
- Temperature Control Accuracy : ±1℃
- Shipping Size(W×D×H)(mm) : 950x650x945

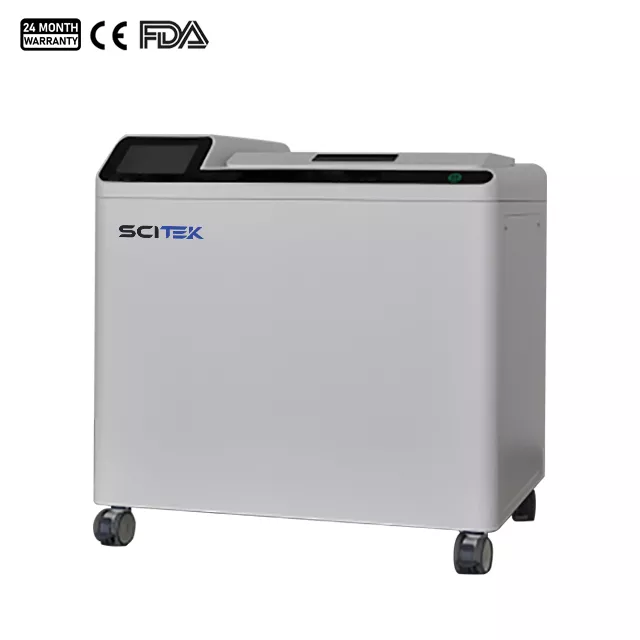

Blood Thawing Machine, Touch Screen
The blood thawing machine is designed for use in blood centers, blood banks, hospital transfusion departments, and similar facilities. It is ideal for quickly thawing frozen blood components and biological products. Additionally, the machine features a UV lamp that sterilizes the internal heating water tank.
Blood Thawing Machine Feature:
- One-key clearing, standby automated water replenishment, temperature and water level monitoring, automatic drainage, and one-key clearing
- Featuring dual-core hardware
- An 8-inch IPS high-definition touch screen suitable for medical use
- Monitoring the thawing temperature in real time, creating a temperature curve, logging and storing the entire process, and enabling wireless data export
- Constant temperature management that is automatic
- Features several fast thawing modes, such as custom, fast, and thawing.
- Integrated FOF water filtration system, fully resolving the scale issue
- Integrated UV sterilizing bulb for internal chamber auto-disinfection
- Separate oscillation mechanism
Blood Thawing Machine Specification:
| Model | BTM-O |
| Maximum Thawing Quantity (200ml) | 36 |
| Temperature Control Range | 25-42℃ |
| Temperature Control Accuracy | ±1℃ |
| Timing Range | 1-999min |
| Thawing Time | ≤20min |
| Cycling Ability | 20L/min |
| Equipped with automatic water inlet, drainage, preheating, and circulating cleaning functions. | |
| Data Recording and Storage | Storage capacity of 64GB, capable of recording and storing over 32,000 sets of data records |
| Consumption | 3500W |
| Power Supply | AC220/110V, 50/60Hz |
| Size(W×D×H)(mm) | 950x650x945 |
| Shipping Size (W×D×H)(mm) | 1020x720x1000 |
| N.W./G.W. (kg) | 90/113 |
Optional Features:
- Internet of Things (IoT) functionality
- Reserved communication port, can be connected to the hospital’s HIS system
- Optional cloud alarm system
- Optional scanner, can scan and input data from blood plasma bag barcodes
FAQ:
For which blood products?
It is mainly used for thawing frozen plasma, cold precipitates and other blood products.
How long does it take to thaw?
Generally 10-20 minutes, depending on product type and capacity.
What is the precision of temperature control?
Usually within ±1℃.
Will the blood be contaminated during the thawing process?
Use sealed package without direct contact with water source to avoid contamination.
How many bags of plasma can be thawed at the same time?
Depends on the model, commonly 2-8 bags.
Is there any alarm function?
Yes, abnormal temperature, completion of operation, etc. can be alarmed.
How to sterilize the blood thawing machine?
Most of them support UV or ozone sterilization.
Which medical institutions are it suitable for?
Suitable for blood stations, blood transfusion departments in hospitals, and biological product enterprises.
