- Model : GC-126
- Temperature Range : RT+5℃-400℃
- Temperature Accuracy : ±0.1 ℃
- Temperature Programming : 9 steps
- Shipping size(W×D×H)(mm) : 760X750X860

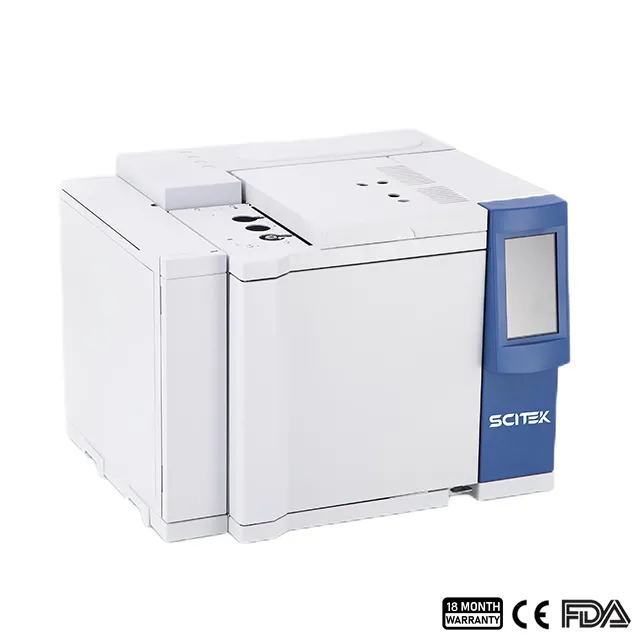

Gas Chromatograph GC-126
Gas Chromatograph Feature:
- 7-inch colour touch screen with real-time display of airflow and pressure
- Multi-core 32-bit embedded hardware system to ensure reliable operation of the instrument
- Dual-channel data acquisition card for fast sampling
- Synchronous external trigger function, can start the host computer and workstation simultaneously through external signals.
- Automatic fault identification and system self-test function ensure safer operation.
- Support remote data control
Gas Chromatograph Specification:
| Model | GC-126 | |

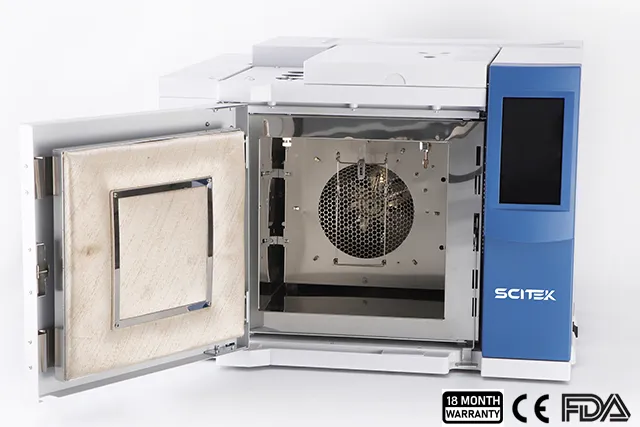

| Column Temperature Box | Temperature Range | RT+5℃-400℃ |
| Temperature Accuracy | ±0.1 ℃ | |
| Temperature Programming | 9 steps | |
| Program Total Time | 9999.9 min | |
| Max Heating Rate | 60℃/min | |
| Sample | Temperature range | RT+7℃~ 420 ℃ |
| Fill column, split/split sampler can be installed | ||
| Working under constant pressure mode | ||
| No more than three independent sampling systems are connected simultaneously | ||
| Detector | Temperature Control | Max. 420℃ |
| A maximum of 2 units are installed simultaneously. FID, TCD, ECD and FPD are optional. | ||
| Flow/pressure is displayed directly on the screen. | ||
| Hydrogen flame ionization detector (FID) | High voltage switch control | |
| Baseline signal display | ||
| Ignition coil control | ||
| Detection limit: ≤ 3×10-12 g/s | ||
| Sample: N-hexadecane (minimum detection quantity: 3pg/s) | ||
| Dynamic range: 107 | ||
| Thermal conductivity detector (TCD) | Bridge voltage switch control | |
| Bridge current setting: 0 ~ 220 mA | ||
| Sensitivity: 5000 mV•mL/mg | ||
| Dynamic range: 105 | ||
| Electronic capture detector (ECD) | Radiation source: Ni63 | |
| Detection limit: ≤8×10-14g/s | ||
| Sample: R 666 (minimum detection quantity: 80FG/s) | ||
| Dynamic range: 103 | ||
| Flame photometric detector (FPD) | Temperature setting: Maximum 350℃ | |
| Detection limit: ≤2×10-12 g/s (P) | ||
| ≤4×10-11 g/s (s) | ||
| Sample: Methyl parathion | ||
| Dynamic range: P 103 | ||
| Dynamic range: S 102 | ||
| Heating area | In addition to the column box independent heating area, there are six heating areas. 2 injector heating zones, 2 detector heating zones and 2 auxiliary heating zones. | |
| The maximum operating temperature of the auxiliary heating area can reach 400℃ | ||
| Basic Function | Power Supply | AC220V±10%, 50Hz |
| Shipping size(W×D×H)(mm) | 760x750x860 | |
| N.W./G.W. (kg) | 64/86 | |
What is Gas Chromatography?
Gas chromatography (GC) is an analytical technique used to separate and detect chemical components in a sample mixture to determine their presence and/or content. These chemicals are usually organic molecules or gases. In order to be successfully analyzed by GC, these components must be volatile (typically with molecular weights below 1250 Da) and thermally stable so that they do not degrade in the GC system.
What is the working principle of Gas Chromatography?
Gas Chromatography (GC) is a separation and analytical technique based on the equilibrium of the distribution of the sample components between the stationary phase and the mobile phase, and its working principle can be divided into the following key components:
1. Basic Components
Carrier Gas (Mobile Phase): Inert gas (e.g., Nitrogen, Helium, Hydrogen), which carries the sample through the chromatographic column.
Inlet system: The sample is vaporized and introduced into the carrier gas stream (e.g., microsyringe, autosampler).
Chromatographic Columns:
Packed Columns: Filled with inert solid particles coated with stationary phase.
Capillary columns: Long, thin quartz tubes (0.1~0.5 mm in diameter and 10~100 m in length) coated with stationary phase.
Stationary phase: High-boiling liquid (e.g. polysiloxane) or solid adsorbent, which determines the separation selectivity.
Detector: Detects components and outputs signals (e.g. FID, TCD, ECD, etc.).
Data processing system: Records and analyzes chromatograms.
