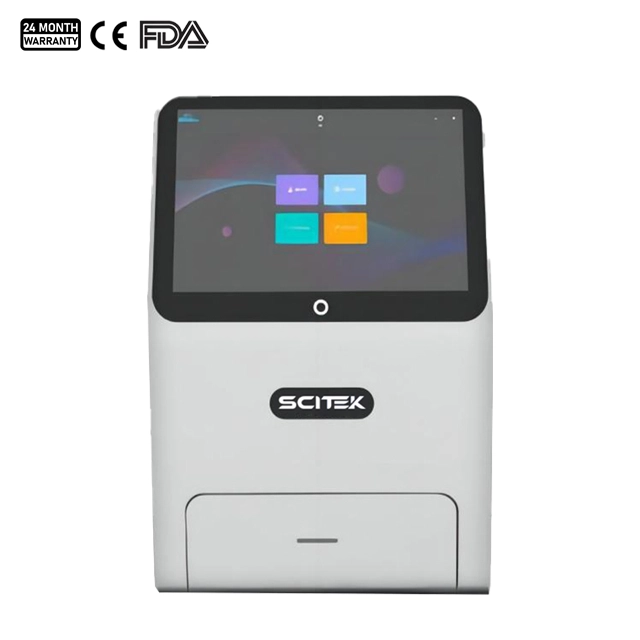

Automatic Gel Imaging and Analysis System

Automatic Gel Imaging and Analysis System

This automatic gel imaging and analysis system captures images and analyses protein blot and gel data efficiently and easily.

Model : AG-I3T
Pixel : 6 million pixels
Photosensitive Efficiency : High QE: >79%
Dynamic Range : ≥4.8 orders of magnitude
Size(WxDxH)(mm) : 362x360x566

Share the product

Category: Gel Imaging System

Details

This automated gel imaging and analysis system is an efficient and accurate laboratory device designed for imaging and quantitative analysis of nucleic acid and protein gels. Equipped with a high-resolution camera and advanced image processing software, the system automatically captures and analyses gel images. Its user-friendly interface and one-button operation make data acquisition and analysis fast and easy, greatly improving experimental efficiency.

Automatic Gel Imaging and Analysis System Feature:

6 megapixel high-resolution image sensor for capturing details in gel electrophoresis experiments.
Wide range of exposure times to meet the flexible needs of various experimental conditions.
20 megapixel autofocus function provides clear, high-quality images with easy operation.
High dynamic range to accurately capture strong and weak signal differences.
Improves the detail and quality of experimental images, facilitating data analysis and interpretation of results.

Automatic Gel Imaging and Analysis System Specifications:

Model	AG-I3T
Pixel	6 million pixels
Exposure	1 ms-5000ms
Photosensitive Efficiency	High QE: >79%
Pixel Merge	1×1
Electric Lens	F=1:1.0 20 million auto focus lens
Dynamic Range	≥4.8 orders of magnitude
Image Density	16 bit (0-65535 colors)
Ultraviolet Transmission	302nm, optional transmission blue light
White Light Reflection	LED reflection (cold light)
White Light Transmission	White light conversion sample plate
Filter Lens	590nm standard configuration, others optional
Shooting Area	Shooting area: 21x21cm
Timed Close	1~60 minutes
Touch System	12.5-inch touch
Sizes(W×D×H)(mm)	362x360x566
Shipping Size (W×D×H)(mm)	470x460x670
N.W./G.W. (kg)	19.5/25

Automatic Gel Imaging and Analysis System Packing:

This automatic gel imaging and analysis system is packed in a sturdy wooden case with foam lining, shock and impact resistant. Co-operate with reputable logistics companies to provide full tracking. Free repair or replacement for transport damage to ensure safe delivery.

WHY SCITEK

24 Months Limited Warranty
CE & FDA Standards
1-2 Days Handling and 7-30 Days Shipping
