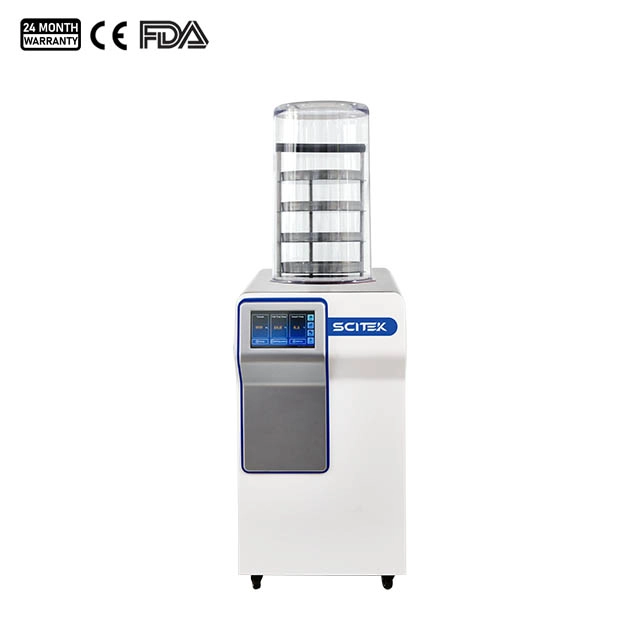

Floor Freeze Dryer Feature:

The compressor combines hybrid refrigeration technology to achieve both low-temperature stability and environmental performance.
Industrial-grade embedded operating system with separate power supply design enhances operational safety.
Features automatic parameter saving functionality, supporting data viewing, USB export, deletion, and data loss protection.
Vacuum pump delayed start design operates only below the set temperature, effectively extending service life.
Equipped with a 7-inch color LCD touchscreen, featuring an intuitive interface, lock screen functionality, and optional PC/mobile remote control.

Floor Freeze Dryer Specification:

Model		FD-12A	FD-12B	FD-12C	FD-12D	FD-12BM
Type		Standard Chamber	Manual Capping	Multi-manifold	Multi-manifold Capping	T-frame
Freeze-dried Area		0.12㎡	0.08㎡	0.12㎡	0.08㎡	/
Amount of vials of cillin	Φ12mm	920	560	920	560	/
	Φ16mm	480	285	480	285	/
	Φ22mm	260	165	260	165	/
Cold Trap Temperature		-60℃ (Optional-80℃)
Water Capture KG/batch		4
Standard Vacuum Degree		≦5Pa
Ultimate Vacuum Degree		2PA
Material Tray		200mm 4 layers	180mm 3 layers	200mm 4 layers	180mm 3 layers	/
Consumption		680W Optional-80℃ 1300W
Main Unit Weight		70kg (Optional-80℃: 80KG)
External Size		600x510x760mm
Power Supply		AC220V50HZ
Applicable Environment		Ambient temperature ≦30℃
Noise		≦55dB
Accessories		Vacuum pump, 2 KF25 clamps, 1 KF vacuum hose
