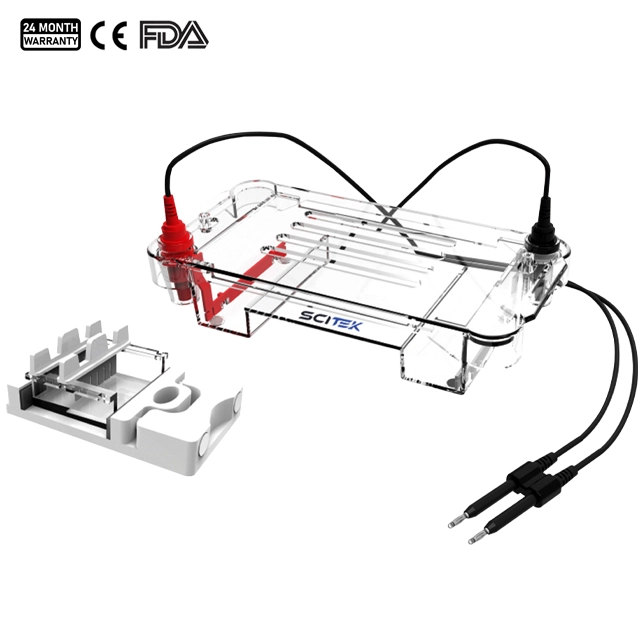

The horizontal electrophoresis system is made of acrylic and consists of two buffer chambers, each containing one electrode. The device consists of a gel comb, a horizontal electrophoresis tank, a casting tray, electrodes and a power supply.
Horizontal Electrophoresis Tank Feature:
- This horizontal electrophoresis tank is crafted from high-strength transparent material using one-time injection molding for superior quality and durability. The open-hole design of the upper cover aids in heat dissipation and allows users to observe internal experiments.
- The horizontal electrophoresis tank features a unique elastic compression-type gel maker, preventing gel from sticking to the tray and simplifying the preparation process. Removable electrodes make cleaning and maintenance easy, ensuring long-term stability and reliability.
- Additionally, the use of 99.99% high-purity platinum electrode wire enhances conductivity and corrosion resistance, ensuring accuracy and durability. These features make it an essential laboratory tool, providing a convenient and reliable environment for users.
Horizontal Electrophoresis Tank Specifications:
| Model | ET-H01 |
| Gel Tray(W×L)(mm) | 75×60 |
| Gel Thickness | 1&1.5mm |
| Sample Comb | 6,11 samples |
| Number of Samples | 6~22pcs |
| Buffer Capacity | 300ml |
| Sizes (W×D×H)(mm) | 180×90×70 |
| Shipping Size(W×D×H)(mm) | 310×310×220 |
| N.W./G.W. (kg) | 1/2 |
| Standard Accessories |
| Name | Specification | Quantity |
| Main Body Groove (Upper Cover) | | 1 |
| Main Tank (Lower Tank) | | 1 |
| Electrode | Positive pole | 1 |
| Negative pole | 1 |
| Glue Maker | | 1 |
| Tray | | 1 |
| Sample Comb | 1.0mm 6 samples | 2 |
| 1.0mm 11 samples | 2 |
| 1.5mm 6 samples | 2 |
| 1.5mm 11 samples | 2 |
| Wireway | | 1 |
Advantages of Horizontal Electrophoresis Tank:
- Proteins, RNA, and DNA are often analyzed and separated by size in horizontal electrophoresis tanks.
- The two buffer chambers that make up the acrylic horizontal electrophoresis apparatus each include an electrode.
- The benefits of horizontal electrophoresis systems are ease of use, affordability, and capacity to evaluate a higher volume of samples.
- Tanks for horizontal electrophoresis are widely used in comet assay and nucleic acid separation and analysis.
