The multi-view microscope has been developed specifically for educational purposes with a major focus on ergonomics.

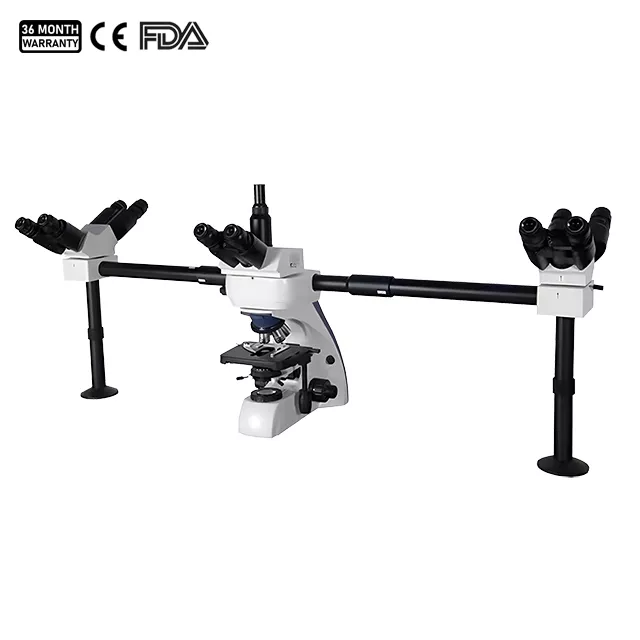

The MSC-MV505T multi-view microscope stands out with its advanced design and features, offering an intuitive operating experience and exceptional viewing performance. Perfect for laboratory and research settings, it delivers a high-quality microscopic observation experience for users.
| Model | MSC-MV505T |
| View Head | Siedentopf trinocular head, Inclined at 30°, 360° Ratatable, Interpupilary distance 50-75mm, Three levels of light splitting(1pc, main microscope) |
| Siedentopf binocular head, Inclined at 30°, 360° Ratatable, Interpupilary distance 50-75mm (4pcs, secondary microscope) | |
| Optical System | Infinite optical system |
| Eyepiece | Wide field plan eyepieces WF10×/22 |
| Objective | Infinite plan objective 4×/N.A.0.1, 10×/N.A.0.25, 40×/N.A.0.65, 100×/N.A.1.25 (Oil) |
| Nosepiece | Quadruple nosepiece |
| Condenser | N.A.1.25 Abbe condenser with variable diaphragm and filter |
| Focusing | Coaxial coarse & Fine focus adjustment, fine division 0.002mm |
| Stage | Double layers mechanical stage |
| Stage size: 180x160mm | |
| Moving range : 80x50mm | |
| lllumination | Kohler lllumination, With aperture diaphragm and field optical cable, halogen lamp 12V/100W, Brightness adjustable |
| Pointer Module | Middle LED pointer, brightness adjustable |
| Shipping Size(W×D×H)(mm) | 730x570x220; 350x270x540; 440x340x560 |
| G.W. (kg) | 11;9;11 |
