With an immersion circulator and an open reservoir, Scitek’s thermostatic water bath maintains a steady temperature. Temperature-sensitive samples can be heated with precision thanks to the tiny temperature inaccuracy and configurable temperature range of RT+5 to 100°C.
The thermostatic water bath’s main component is made of stainless steel. Because the reservoir is continuous, there is no chance of leakage or rust. The surface has an easy-to-clean, basic design.
Thermostatic Water Bath Feature:
- The roof cover and interior container are made of stainless steel.
- PID programming, a digital tube display, timing capabilities, and over-temperature protection are all features of this intelligent temperature controller.
- Include a simple one-button electric drain switch for easy draining.
- Thermostatic water baths with a single hole do not have a drain feature.
- Turn off the power when there is a water deficit to guarantee the product operates safely.
- The control unit quickly reaches the desired temperature and maintains a constant temperature to prevent overheating of the sample
Thermostatic Water Bath Specification:

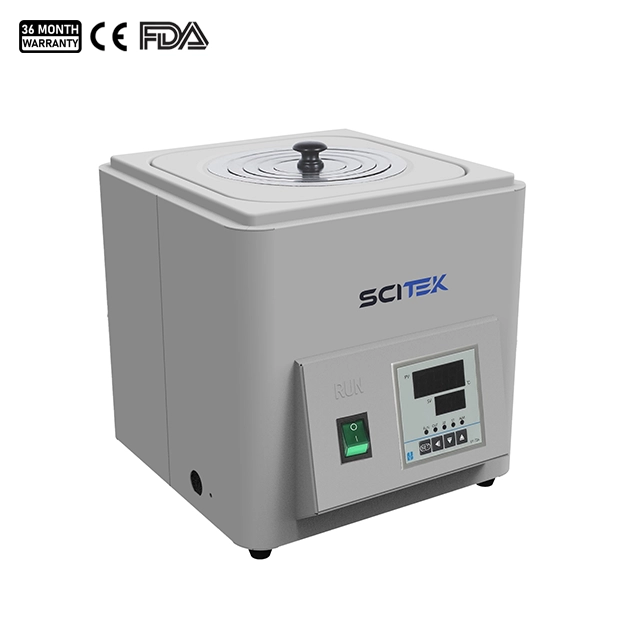

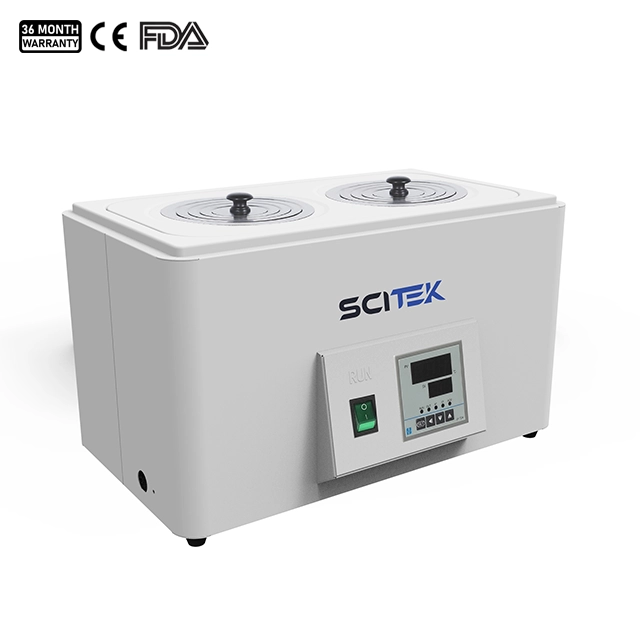

Model | WB-1L1H | WB-1L2H | WB-2L4H |
Classification Specifications | 1 hole | 1 row & 2 holes | 2 rows & 4 holes |
Heating Mode | Nature water convection heat transfer |
Function | Temp. Range | RT+5~100℃ |
Temp. Resolution Ratio | 0.1℃ |
Temp. Motion | ±0.5℃ |
Temp. Uniformity | ±1.0℃ |
Structure | Inner Chamber | Stainless steel |
Outer Shell | Cold-rolled steel plate, resistance to chemical reagents coating on the surface |
Heater | Stainless steel heating tube |
Power Rating | 0.4kW | 0.5kW | 1.0kW |
Controller | Temp. Control Mode | PID |
Temp. Setting Mode | Touch button setting |
Temp. Display Mode | Measuring temperature displays on the three digital tubes upper row, set temperature displays on the lower row |
Timer | 0~9999min (with timing wait function) |
Operation Function | Fi×ed temperature operation, timing function, auto stop. |
Program Mode | Optional |
Additional Function | Deviation Correction, menu key locked,power failure back-up, power-off memory |
Sensor | NTC |
Safety Device | Over temperature alarm |
Specification | Volume | 3.4L | 6.1L | 14.6L |
Load Per Rack | 5kg |
Shelf Number | 1 |
Power Supply | AC220/110V, 50/60Hz |
Chamber Size (W×D×H)(mm) | 150×135×150 | 300×135×150 | 325×300×150 |
Sizes (W×D×H)(mm) | 170×154×210 | 318×168×210 | 350×318×210 |
Shipping Size (W×D×H)(mm) | 240×230×280 | 390×240×280 | 420×390×280 |
N.W./G.W. (kg) | 3.3/6 | 4.5/7 | 6/9 |

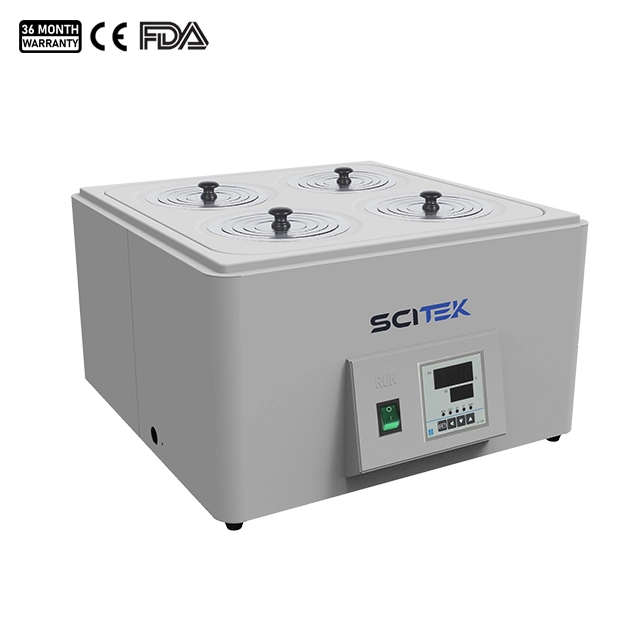

Details of Thermostatic Water Bath (WB-2L4H):
