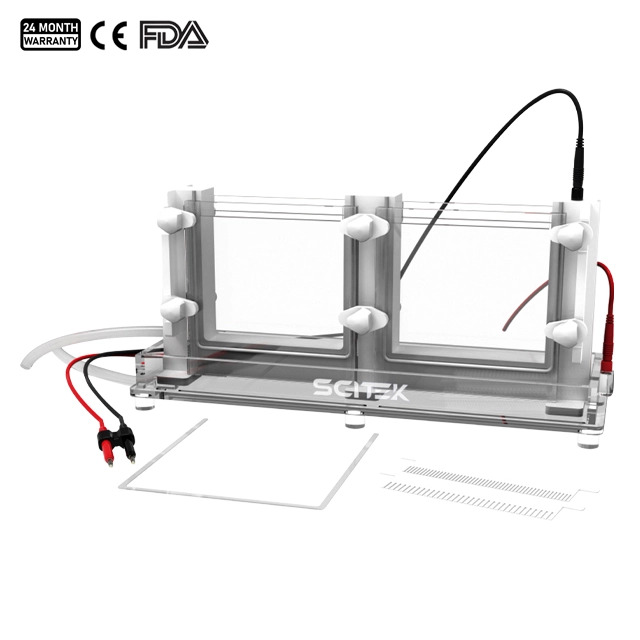

The vertical electrophoresis tank is designed for efficient separation and analysis of macromolecules, such as DNA, RNA, and proteins, through gel electrophoresis.
Vertical Electrophoresis Tank Feature:
- Ideal for all types of protein electrophoresis gels.
- Gel glass plate that has been thickened offers increased structural stability and deformation resistance.
- four medium-sized gels electrophoresed simultaneously.
- Concave plate and side bar integrated design improves separation effect and resolution.
- A special sealing mold is used to make sure that there is no gel leakage, which minimizes experimental failure and waste from gel leaking.
- The top and bottom slots include buffer drain openings that make it simple to remove any leftover liquid.
Vertical Electrophoresis Tank Specifications:
| Model |
ET-V03 |
| Glass Tray(W×L)(mm) |
180×180 |
| Gel Tray(W×L)(mm) |
150×150 |
| Sample Comb |
20, 34, 50 samples (optional gun sampling) |
| Gel Thickness |
1.0mm |
| Buffer Capacity |
1500ml |
| Sizes (W×D×H)(mm) |
420×130×190 |
| Shipping Size(W×D×H)(mm) |
570×360×300 |
| N.W./G.W. (kg) |
3.5/5 |
| Standard Accessories |
| Name |
Specification |
Quantity |
| Electrophoresis Tank |
|
1 |
| Concave Glass Plate |
|
4 |
| Flat Glass Plate |
|
4 |
| Sealing Frame |
|
4 |
| Sample Comb |
20 samples |
4 |
| 34 samples |
4 |
| Drain Pipe |
|
2 |
| Wireway |
|
1 |
Application of Vertical Electrophoresis Tank:
- Molecular Biology: Ideal for the separation and analysis of nucleic acids and proteins.
- Genetic Research: Used for DNA fingerprinting, genotyping, and molecular cloning.
- Biotechnology: Essential in protein purification, DNA sequencing, and genetic engineering experiments.
- Clinical Diagnostics: Utilized in the analysis of clinical samples for diagnostics and research.
- Educational Laboratories: Perfect for teaching basic and advanced electrophoresis techniques in academic institutions.
